3000L/H Refuse Derived Fuel Plant Briquetting Machine For Used Clothing

Ask Lasest Price
Price :
Brand Name :	Xrido
Model Number :	Customizable
Certification :	CE ISO TUV
Delivery Time :	5-30 word days

Add to Cart

Product Details
Company Profile

3000L/H Refuse Derived Fuel Plant Briquetting Machine For Used Clothing

Plant for the Production of Refuse Derived Fuels (rdf)

Products Description

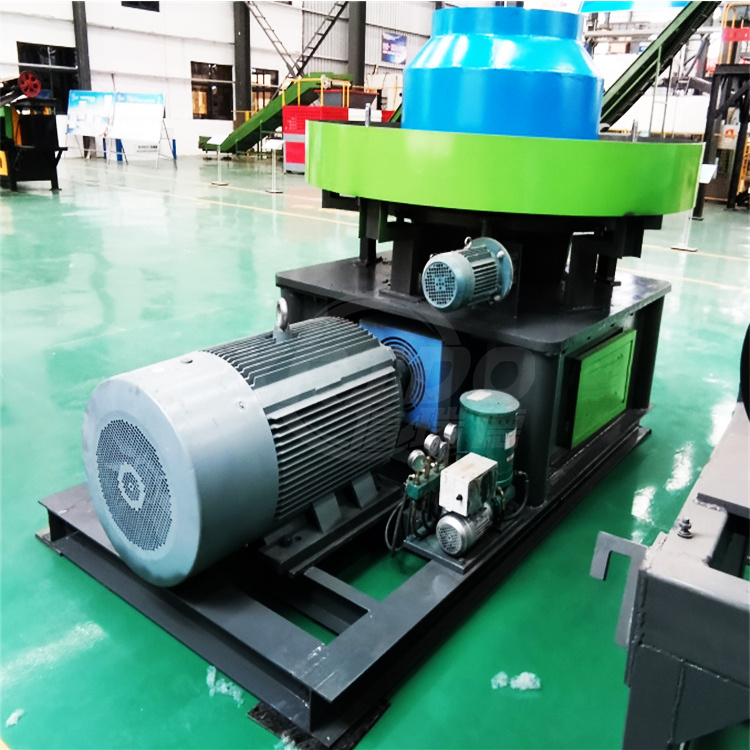

RDF briquetting machine is a special equipment that processes biomass raw materials (such as domestic garbage, straw, sawdust, agricultural and forestry waste, etc.) into high-density solid fuel blocks through mechanical compression molding process. The equipment compresses the crushed biomass raw materials in the mold through hydraulic or mechanical pressure to make regular block fuel. It has the characteristics of high calorific value, full combustion, and easy storage and transportation. It can replace traditional fossil fuels and is widely used in industrial boilers, biomass power plants and civil heating. It is an important environmental protection equipment for realizing waste resource utilization.

3000L/H Refuse Derived Fuel Plant Briquetting Machine For Used Clothing

Details Images

Domestic garbage, industrial solid waste, paper-making waste, waste from water washing plants, textile waste, leather waste, ragwaste, water plant sludge, industrial sludge, etc.

Main Application

The raw materials used come from landfills, garbage sorting plants, industrial solid waste treatment plants, paper mills, chemical plants, paper slag washing plants, scrap steel plants, textile mills, leather factories, waste clothing treatment plants, sewage treatment plants, industrial sludge treatment plants, industrial park solid waste disposal centers, environmental protection industrial parks, and garbage recycling companies.

HOW TO MAKE RDF BRIQUETTES FROM CITY WASTE

Pre-shredder – Shred waste to a size below 80mm
Magnetic Separator – The conveyors are equipped with special customized magnetic separators.

Rotary Screener, Air Separator – Separate combustibles waste by size and density.

Shredder – Shred waste to a size below 40-60mm.

Buffer Bin – The material is conveyed to the buffer Bin after sorting and shredding. The speed is adjusted against the briquetting machine automatically.

Briquette Press – 50% energy saving, fast punch, high output, and the molding is less affected by moisture content.

Conveying System – The whole line is sealed under a pulse dust removal system, which is efficient and reliable for dust removal and improves the operating environment.

Intelligent Control System – All controls under the PLC touch screen.

Safety – The shredder and dust collector is equipped with a spark detection system, which actively detects the spark during the shredding process and eliminates fire hazards.

Manufacturing Technique

Model	Power (KW)	Number of ring die holes	Capacity (t/h)	Dimensions (mm)
YDRK-54	90	54	1.5-2.5	2200×1100×1700
YDRK-72	132	72	3-4	3230×2200×2000
YDRK-120	185	120	4-5	4055×2836×2380
