315T 400T 500T Steel Plate Shearing Machine Hydraulic Metal Shear Machine

Steel Plate Shearing Equipment Cutting alligator Shears for Cutting Metal Roofing

Products Description

Similar to the crocodile, it is named after the crocodile.Because of its simple design structure, low failure rate, high shear pressure, and low maintenance cost, it has been unanimously recognized by the market.

315T 400T 500T Steel Plate Shearing Machine Hydraulic Metal Shear Machine

1.It is hydraulically driven, easy to operate and easy to maintain.

2.Working knife length: 400mm,600mm, 700mm,800mm, 1000mm, 1200mm, the shearing force from 63 tons to 400 tons, a total of 8 grades. The shearingmachine with a cutting edge of 700mm or more is especially suitable for cutting scrapped cars.

3.There is no need to install the foot screw, and the diesel engine can be used as the power source.

4.The equipment adopts hvdrauic transmission, Compared with the mechanicaltransmision shearing machine,it has the advantages of smal volume, iohtweiohilow inertia,low noise, stable movement, convenient operation, fexiblity, large shear section and convenient adjustment of scisors. 0peration is safe and easy toimplement overload protection.

Product Parameters

Model	Max.material pressure(t)	Blade length (mm)	Max.opening mouth (mm)	Shearing frequency	Dimension of main sheared material	Power(kw)
AT-63	63	400,600,800	200,600,800	10~14	30*30,Φ35	7.5
AT-100	100	600	280	10~14	40*40,Φ45	7.5
AT-120	120	600	280	10~13	45*45,Φ50	15
AT-160	160	800	350	10~12	55*55,Φ63	18.5
AT-200	200	800	380	9~12	60*60,Φ65	22
AT-250	250	1000	450	8~12	70*70,Φ75	30
AT-315	315	1200	520	8~11	80*80,Φ85	37
AT-400	400	1500	660	8~11	90*90,Φ95	44
AT-500	500	1800	690	6~10	Φ120	60

Product Details

Working Principle

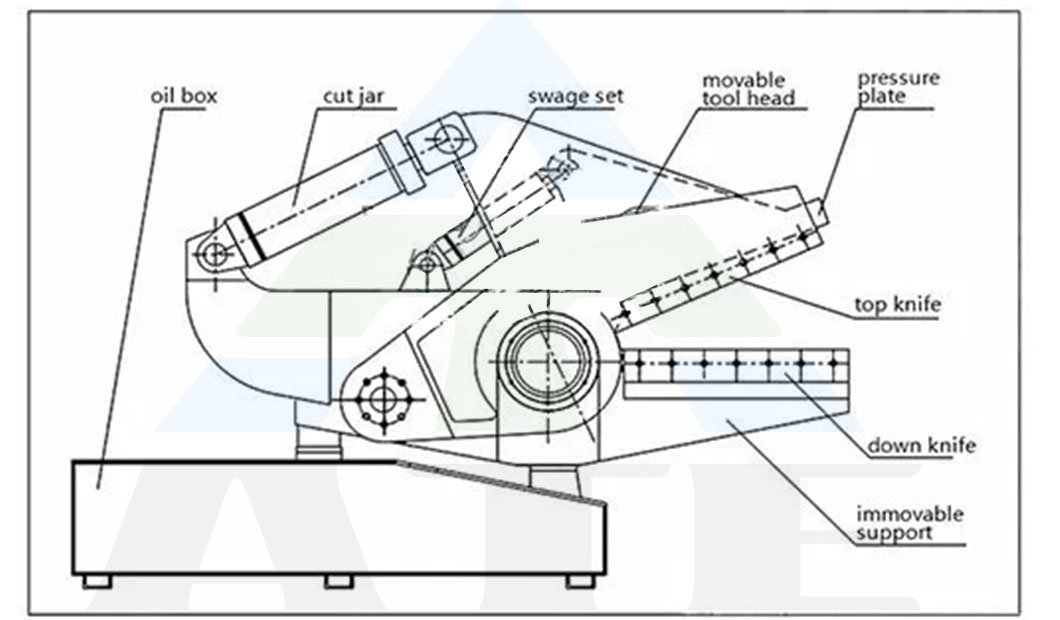

The crocodile shearing machine is a pair of upper and lower crocodile shearing structure. The working principle is driven by a hydraulic pump to form pressure. Under the control of the electromagnetic reversing valve and the oil circuit, the oil cylinder can be raised and contracted. The upper crocodile and the lower crocodile fixed knife realize the interactive shearing of the upper crocodile knife and the lower crocodile fixed knife under the continuous pushing action of the main oil cylinder to realize the interactive shearing of the material that enters the incision. shear.

Product Application

The crocodile shearing machine is suitable for metal recycling processing plants, scrap car dismantling plants, smelting and casting industries, scrap steel plants, etc. It can cut various shapes of steel and various metal materials in cold state. The crocodile shearing machine is based on its structural principle. Similar to the crocodile, it is named after the crocodile.
Because of its simple structure, low failure rate, high shear pressure and low maintenance cost, it has been unanimously recognized by the market.

Company Profile

Henan Xrido Environmental Protection Technology Co.Ltd.is a high-tech enterprise committed to the R &D, manufacturing and sales of mechanical equipment in the environmental protection and recycling industry.

We mainly focuses on design and manufacturing automatic waste segregation machine garbage sorter construction waste sorting equipment. include trammel screen machine, air separation machine, magnetic separators, garbage bag breaking machine, waste shredder machine, manual sorting tables, waste baling machine, chain plate feeder, belt conveyor.etc.

Our machine has passed ISO9001:2000, CCC,CE certification.Our machines has already spread over the world.We can provide customers with one-stop service and solutions, complete equipment, on-site installation, and after-sales support.
