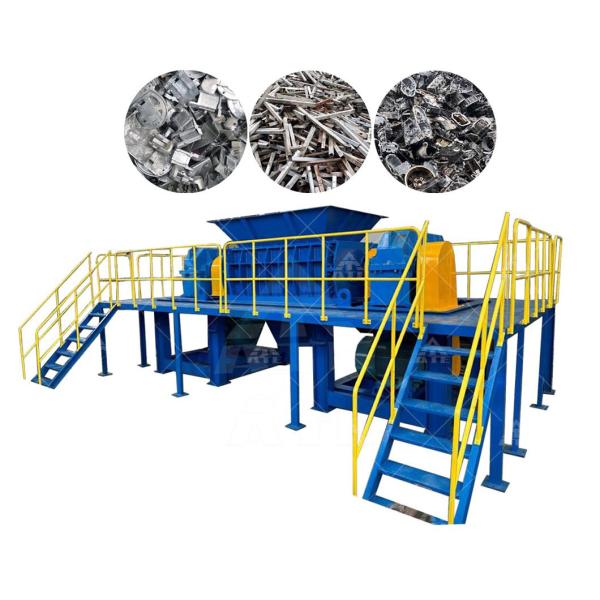

Aluminum Radiator Metal Shredder Aluminum Rim Metal Chip Shredder

Good Price Scrap Metal Aluminum Radiator Shredder Crusher Separator Aluminum Rim Shredder

Products Description

The scrap aluminum shredder generates shear force through the counter-rotation of high-strength alloy blade shafts, and shreds scrap aluminum such as automobile wheels and engine housings into 50-100mm block materials. The shredded aluminum blocks need to be used with eddy current separators, magnetic separators and other equipment to improve purity (remove impurities such as plastics and rubber).

Typical application scenarios
Automobile dismantling industry: Processing aluminum alloy wheels, engine cylinders and other parts, the purity of aluminum materials after crushing can reach more than 92%
Recycled aluminum plant: As a pre-smelting pretreatment equipment, it reduces energy consumption costs (the energy consumption of recycled aluminum is only 5% of that of original aluminum production)
Environmental protection project: Comply with the policy requirements of solid waste resource utilization and reduce landfill pollution

Aluminum Radiator Metal Shredder Aluminum Rim Metal Chip Shredder

Double Shaft Shredder Machine

model	size(mm)	Shredder room(mm)	Blads(mm)	motor(k)	weight(kg)
XD-600	2800×1300×1850	600×480	200	11×2	2200
XD-800	3000×1300×1850	800×480	200	15×2	2500
XD-1000	3300×1900×2200	1000×690	300	22×2	5200
XD-1200	3600×2000×2200	1200×690	300	30×2	6400
XD-1500	4180×2100×2400	1500×850	550	55×2	9000
XD-1800	5800×2400×3300	1800×1206	550	75×2	13600
XD-2000	6400×2700×3500	2000×1490	600	90×2	20100
XD-2500	7500×3200×3800	2500×1800	600	110×2	25000
Notes: 1. The number of blade claws, diameter, and thickness can be customized according to the type of material and the size of the discharge. 2. The output of the equipment will be different depending on the type of material and the size of the discharge. 3. More information please contact us, we can custom the product on your request.

Product Application

The scrap aluminum engine shredder is not only a device for shredding scrap metal, but also has a wide range of functions and uses. It can shred all metal products, such as scrap metal, scrap steel, trucks, cars, steel scraps, aluminum scraps, steel plates below 10mm, cables, engines, scrap aluminum, etc. As long as the items are made of metal or contain metal components, they can be recycled using the scrap aluminum engine shredder.

The scrap aluminum engine shredder adopts double-axis independent drive, so that the material is pressed accordingly during production to achieve automatic feeding function. The unique knife shaft structure and four-corner rotating knife will not cause the shaft to be entangled or the equipment to be stuck during the low-speed and high-torque production process, thereby improving production efficiency. The equipment is suitable for crushing various tough and high-viscosity materials.
