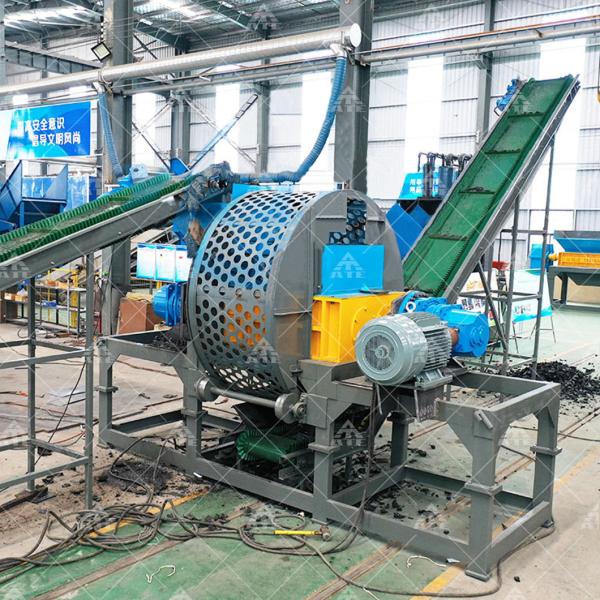

Customized Truck Tire Shredder 2tpd 3tpd Tire Shredding And Recycling

Truck Tyre Tire Shredder Machine Recycling Production Line for Waste Car Tire

Products Description

Tire shredder is a mechanical device specially used for processing waste tires. It uses mechanical force to break down the whole tire into smaller rubber blocks or strips for subsequent resource utilization. Tire shredder relies on the mutual engagement and low-speed rotation (5-13 rpm) of dual-axis or multi-axis cutters to break down tires through the combined action of tearing and shearing.
The tire shredder is equipped with high-hardness alloy blades, hydraulic forced feeding system and intelligent control module to ensure processing efficiency and safety.
Solve the pollution problem of waste tire accumulation. The shredded rubber blocks can be used as recycled raw materials for runway paving, cracking and refining, and promote the development of the circular economy.

Customized Truck Tire Shredder 2tpd 3tpd Tire Shredding And Recycling

The tire recycling line can effectively realize the automatic separation of materials such as rubber, steel wire, nylon fiber,
etc. The whole line adopts a PLC control system, which is easy to operate and maintain, with low energy consumption and long service life.

model	size(mm)	Blads(mm)	motor(k)	weight(kg)
XD-600	2800×1300×1850	200	11×2	2200
XD-800	3000×1300×1850	200	15×2	2500
XD-1000	3300×1900×2200	300	22×2	5200
XD-1200	3600×2000×2200	300	30×2	6400
XD-1500	4180×2100×2400	550	55×2	9000
XD-1800	5800×2400×3300	550	75×2	13600
XD-2000	6400×2700×3500	600	90×2	20100
XD-2500	7500×3200×3800	600	110×2	25000
Notes: 1. The number of blade claws, diameter, and thickness can be customized according to the type of material and the size of the discharge. 2. The output of the equipment will be different depending on the type of material and the size of the discharge. 3. More information please contact us, we can custom the product on your request.

Product line feature:

1,The whole tire is directly put in, no need to pre-break and pull the steel ring

2,From the entire tire to 1-7 mm granules, the entire process of production packaging, no secondary handling intermediate links 3,According to the customer's output requirements configuration equipment, 200 kg/h-5000 kg/h,a wide range of options

For different tire characteristics and productivity requirements, the line structure may include:

1,Fully automatic wire drawing machine: remove tire steel wheel

2,Conveyor equipment: conveyor belt, screw conveyor and air pressure transmission system

3,Shredder: tear the tire into film(50 mm-150 mm)

4, Steel wire separator: separate the rubber and steel wire and process it into rubber particles(10 mm-20 mm)

5,Magnetic separator: sorting steel wire from rubber wire mixture

6,Crusher: Smash the rubber particles to a smaller size (1 mm-7 mm)

7,Vibrating screen: sorting different sizes of rubber particles, and returning the over-sized particles to the crusher for secondary crushing

8,Fiber separator: remove foreign matter and fiber

9,Secondary Magnetic Separator: Possible Small Wires to Go

10,Mill: The particles are ground to a powder (30 mesh to 100 mesh)

11,Fully automatic bagging system: loading finished products into storage bags or bags

Product Application

It can be used to tear up solid materials such as plastic, rubber, fiber, tire, cables, etc. which are hard to break, such as: nozzle material, rubber head, PET bottle, cardboard, circuit board, wood, plastic barrel, etc. You can select the corresponding model according to the material size and handling capacity.
