Copper Wire Recycling Machine Copper Cable Granulator Automatic Dry Copper Rice Machine

Product Categories
Henan Xrido Environmetal Protection Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Copper Wire Recycling Machine Copper Cable Granulator Automatic Dry Copper Rice Machine from wholesalers

    Buy cheap Copper Wire Recycling Machine Copper Cable Granulator Automatic Dry Copper Rice Machine from wholesalers
    • Buy cheap Copper Wire Recycling Machine Copper Cable Granulator Automatic Dry Copper Rice Machine from wholesalers
    • Buy cheap Copper Wire Recycling Machine Copper Cable Granulator Automatic Dry Copper Rice Machine from wholesalers
    • Buy cheap Copper Wire Recycling Machine Copper Cable Granulator Automatic Dry Copper Rice Machine from wholesalers
    • Buy cheap Copper Wire Recycling Machine Copper Cable Granulator Automatic Dry Copper Rice Machine from wholesalers
    • Buy cheap Copper Wire Recycling Machine Copper Cable Granulator Automatic Dry Copper Rice Machine from wholesalers
    • Buy cheap Copper Wire Recycling Machine Copper Cable Granulator Automatic Dry Copper Rice Machine from wholesalers

    Copper Wire Recycling Machine Copper Cable Granulator Automatic Dry Copper Rice Machine

    Ask Lasest Price
    Certification : CE ISO TUV
    Price :
    Brand Name : Xrido
    Model Number : Customizable
    Payment Terms : Negotiable
    Delivery Time : 2-30 Working Days
    • Product Details
    • Company Profile

    Copper Wire Recycling Machine Copper Cable Granulator Automatic Dry Copper Rice Machine

    Products Description
    Copper Wire Recycling Machine/Copper Rice Machine
    1,Dry copper recycling machine is a professional production line for dry separation of waste wire and cable. For example, circuit lines, communication cables, and wire strippers are not suitable for processing (various civilian wires) waste material's thin filaments, etc.
    2,The feature of this machine is that the size limit can be broken and separated at the same time without
    classification. The structure is new and unique, the production volume is large, and the power consumption is small. The sorting rate is high, one feeding, and multi-machine cooperation is completed.
    3,The whole line is controlled by PLC and is at the leading level in China.
    4,The successful development of the machine has solved the problems in the method of incineration and copper extraction and can improve the quality of the recycling barrel, and can recycle the plastic, and solve the environmental pollution.

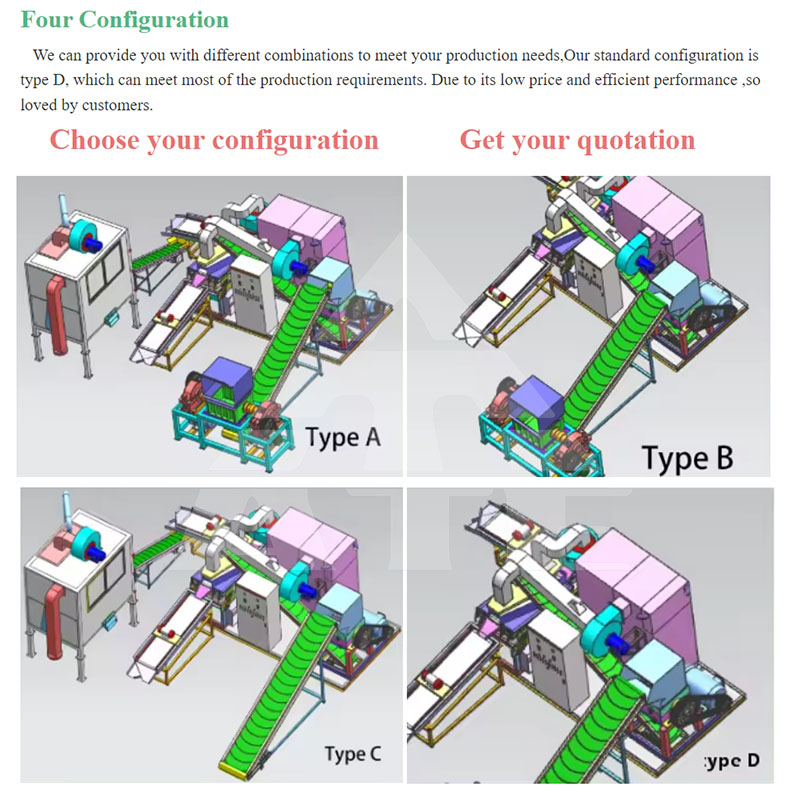

    We can customize metal crushing and recycling production line for you.
    Copper Wire Recycling Machine Copper Cable Granulator Automatic Dry Copper Rice Machine
    Product Features
    * After the waste wire and cable is crushed and processed, the fully automatic mechanical separation can completely separate the copper and the plastic, and achieve the comprehensive utilization purpose, which has high economic benefits.
    * And no dust and no secondary pollution. In addition, the device is an integrated modular structure, which is easy to install and debug, and transported (can be produced after the customer purchases the power supply), and the performance is stable.
    Copper Wire Recycling Machine Copper Cable Granulator Automatic Dry Copper Rice MachineCopper Wire Recycling Machine Copper Cable Granulator Automatic Dry Copper Rice Machine
    Copper Wire Recycling Machine Copper Cable Granulator Automatic Dry Copper Rice MachineCopper Wire Recycling Machine Copper Cable Granulator Automatic Dry Copper Rice Machine



    Copper Wire Recycling Machine Copper Cable Granulator Automatic Dry Copper Rice Machine
    Product Parameters
    Model
    Diameter of materials
    Capacity(kgs / hr)
    Power(KW)
    Dimension(L*W*H)
    Weight(kg)
    XRD-400
    φ0.5-20
    300-400
    15
    1800 * 1300 * 1700
    2850
    XRD-600
    φ0.5-20
    500-600
    37
    2800 * 1800 * 2100
    4200
    XRD-800
    φ0.5-20
    700-800
    45
    2800 * 2000 * 2100
    6500
    XRD-1000
    φ0.5-20
    800-1000
    55
    2800 * 2500 * 2100
    7800

    Product Details
    Copper Wire Recycling Machine Copper Cable Granulator Automatic Dry Copper Rice Machine

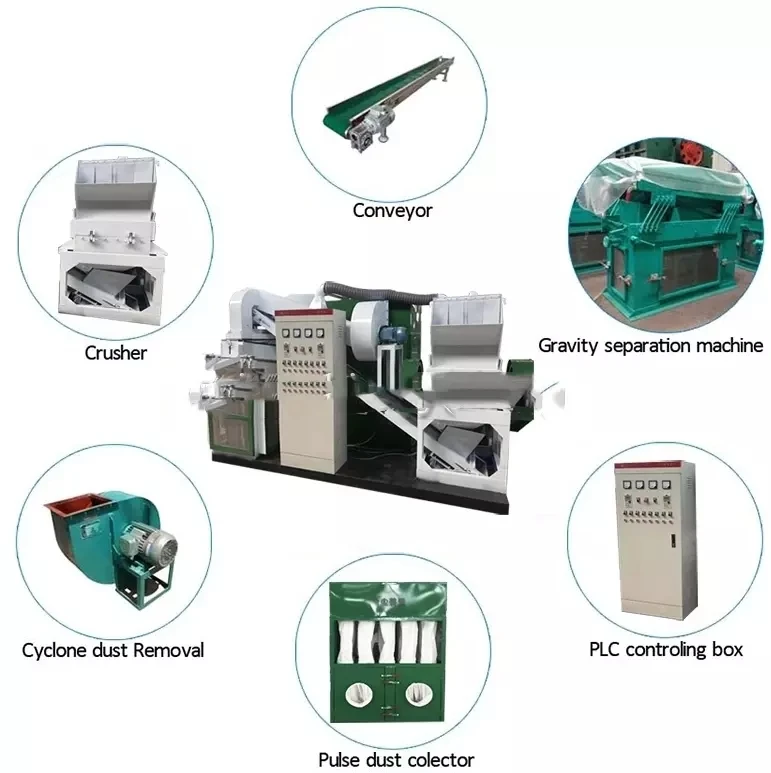

    Equipment details and power
    1. Feeding conveyor 1.1kw 2. Main machine of copper crusher 45KW
    3. Crusher discharge 0.37x2kw
    4. Air separator (3KW + 2.2kw )x2
    5. Dust remover (3KW + 1.5kw )x2
    6. Copper end vibrating screen 0.37kw x2
    7. Plastic end vibrating screen 0.37kwx2
    8. Magnetic separation conveyor 0.55kw
    Remarks: the production line covers an area of 15 square meters of equipment; the power of the whole line: 68.27kw, with a total mass of 5000 kg.
    Copper Wire Recycling Machine Copper Cable Granulator Automatic Dry Copper Rice Machine

    Working Principle Of Copper Wire Recycling Machine
    Dry copper rice machine (waste wire and cable processing equipment): The shredder is used to crush the material into a length of about 3 cm, and then sheared and crushed by a secondary crusher, and then sorted by high-precision airflow sorting to obtain plastic.
    And copper, undivided plastics are sorted by electrostatic separators to ensure copper reuse.

    Copper Wire Recycling Machine Copper Cable Granulator Automatic Dry Copper Rice Machine
    Copper Wire Recycling Machine Copper Cable Granulator Automatic Dry Copper Rice Machine
    1,After the waste wire and cable crushing process,full-automatic mechanical separation can completely separate copper and plastic,and achieve the purpose of comprehensive utilization, with high economic benefits. And no dust and no secondary pollution.
    2,In addition, the device is an overall modular structure,easy to install and debug, and transport (customers can be produced after the power supply is purchased),stable performance.


    Product Application
    Mainly used in automobile electric line, communication cable line, waste wire, telephone line, decoration wire, computer wire, etc. Copper cable granulator is suitable for processing all kinds of scrap wires and cables, wire and cable with a diameter of 1-200 mm, such as Automobile electrical wire, car electric wire, motorcycle electric wire, power cable, communication cable, signal cables and other miscellaneous cables which cannot be processed by wire stripping machine.
    Copper Wire Recycling Machine Copper Cable Granulator Automatic Dry Copper Rice Machine
