Scrap Copper Wire Separator Machine Copper Cable Granulator Aluminium Wire Recycling Machine

Ask Lasest Price
Certification :	CE ISO TUV
Price :	CN¥25,834.57/sets 1-4 sets
Brand Name :	Xrido
Model Number :	Customizable
Payment Terms :	Negotiable
Delivery Time :	2-30 Working Days

Add to Cart

Product Details
Company Profile

Scrap Copper Wire Separator Machine Copper Cable Granulator Aluminium Wire Recycling Machine

Products Description

Copper Wire Recycling Machine/Copper Rice Machine

Dry copper recycling machine is a professional production line for dry separation of waste wire and cable. For example, circuit lines, communication cables, and wire strippers are not suitable for processing (various civilian wires) waste material's thin filaments, etc.

We can customize metal crushing and recycling production line for you.

Product Features

1,After the waste wire and cable is crushed and processed, the fully automatic mechanical separation can completely separate the copper and the plastic, and achieve the comprehensive utilization purpose, which has high economic benefits.

2,And no dust and no secondary pollution. In addition, the device is an integrated modular structure, which is easy to install and debug, and transported (can be produced after the customer purchases the power supply), and the performance is stable.

3,The feature of this machine is that the size limit can be broken and separated at the same time without classification. The structure is new and unique, the production volume is large, and the power consumption is small. The sorting rate is high, one feeding, and multi-machine cooperation is completed.

4,The whole line is controlled by PLC and is at the leading level in China.

5,The successful development of the machine has solved the problems in the method of incineration and copper extraction and can improve the quality of the recycling barrel, and can recycle the plastic, and solve the environmental pollution.

Product Parameters

Model	Diameter of materials	Capacity(kgs / hr)	Power(KW)	Dimension(LWH)	Weight(kg)
Aite-400	φ0.5-20	300-400	15	1800 * 1300 * 1700	2850
Aite-600	φ0.5-20	500-600	37	2800 * 1800 * 2100	4200
Aite-800	φ0.5-20	700-800	45	2800 * 2000 * 2100	6500
Aite-1000	φ0.5-20	800-1000	55	2800 * 2500 * 2100	7800

Product Application

Copper cable granulator is suitable for processing all kinds of scrap wires and cables, wire and cable with a diameter of 1-200 mm, such as Automobile electrical wire, car electric wire, motorcycle electric wire, power cable, communication cable, signal cables and other miscellaneous cables which cannot be processed by wire stripping machine.

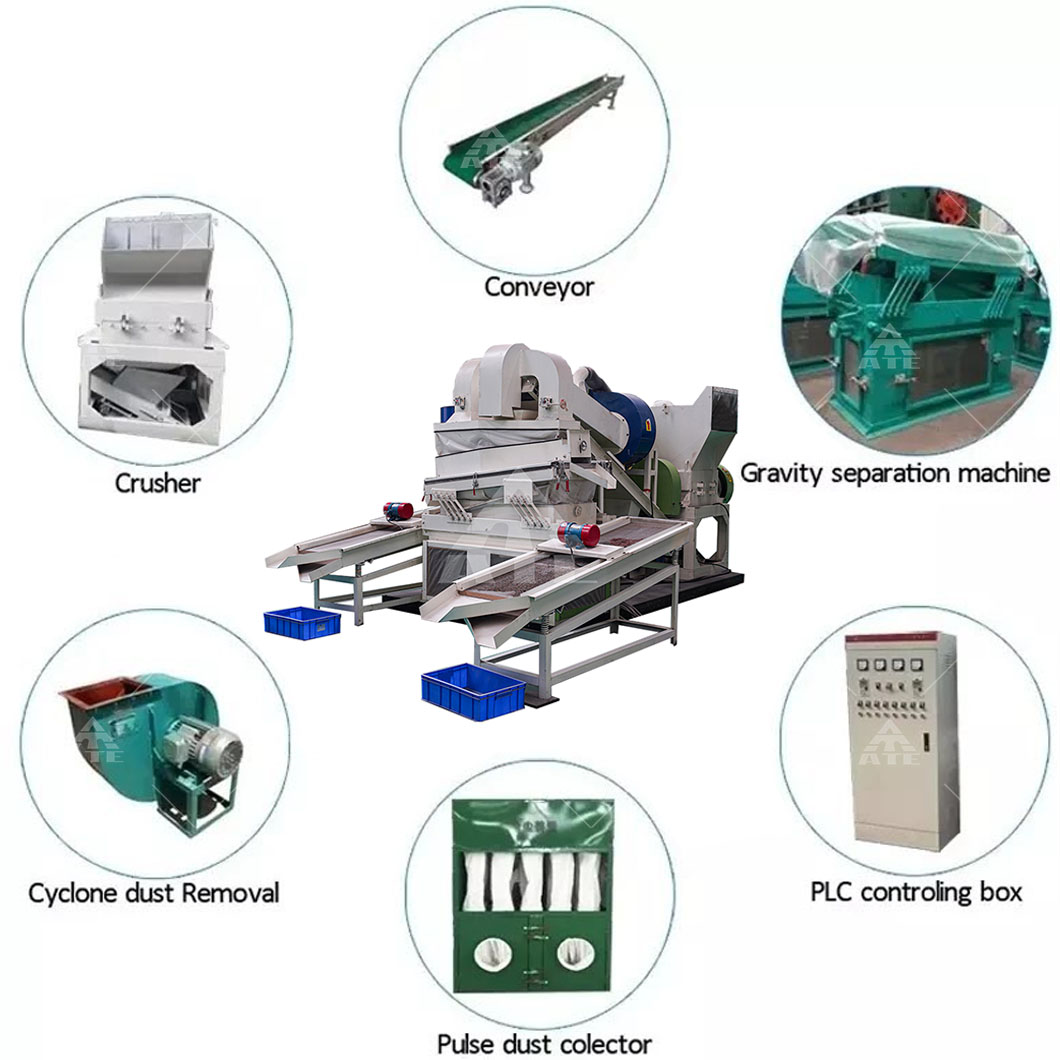

Related Configuration

Equipment details and power

1. Feeding conveyor 1.1kw 2. Main machine of copper crusher 45KW
3. Crusher discharge 0.37x2kw

4. Air separator (3KW + 2.2kw )x2
5. Dust remover (3KW + 1.5kw )x2

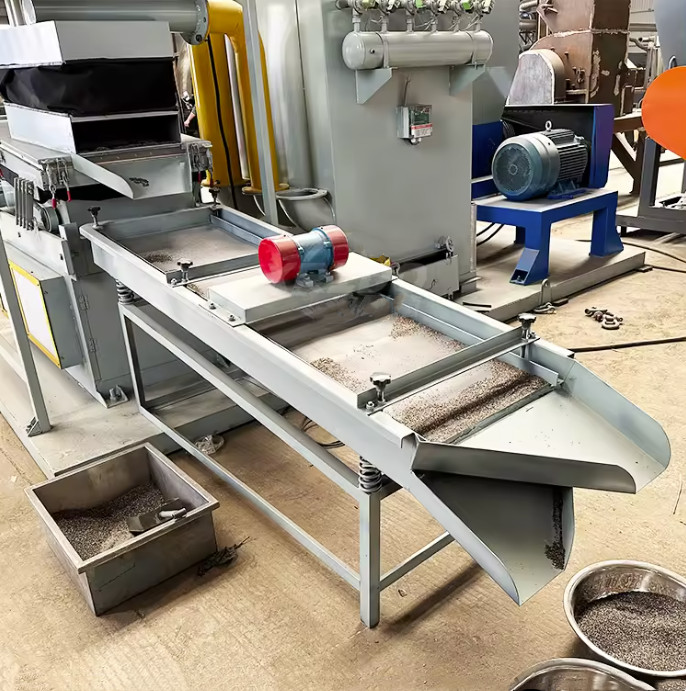

6. Copper end vibrating screen 0.37kw x2
7. Plastic end vibrating screen 0.37kwx2
8. Magnetic separation conveyor 0.55kw
Remarks: the production line covers an area of 15 square meters of equipment; the power of the whole line: 68.27kw, with a total mass of 5000 kg.

Working Principle Of Copper Wire Recycling Machine

Dry copper rice machine (waste wire and cable processing equipment):

The shredder is used to crush the material into a length of about 3 cm, and then sheared and crushed by a secondary crusher, and then sorted by high-precision airflow sorting to obtain plastic.

And copper, undivided plastics are sorted by electrostatic separators to ensure copper reuse.

1,After the waste wire and cable crushing process,full-automatic mechanical separation can completely separate copper and plastic,and achieve the purpose of comprehensive utilization, with high economic benefits. And no dust and no secondary pollution.
2,In addition, the device is an overall modular structure,easy to install and debug, and transport (customers can be produced after the power supply is purchased),stable performance.
